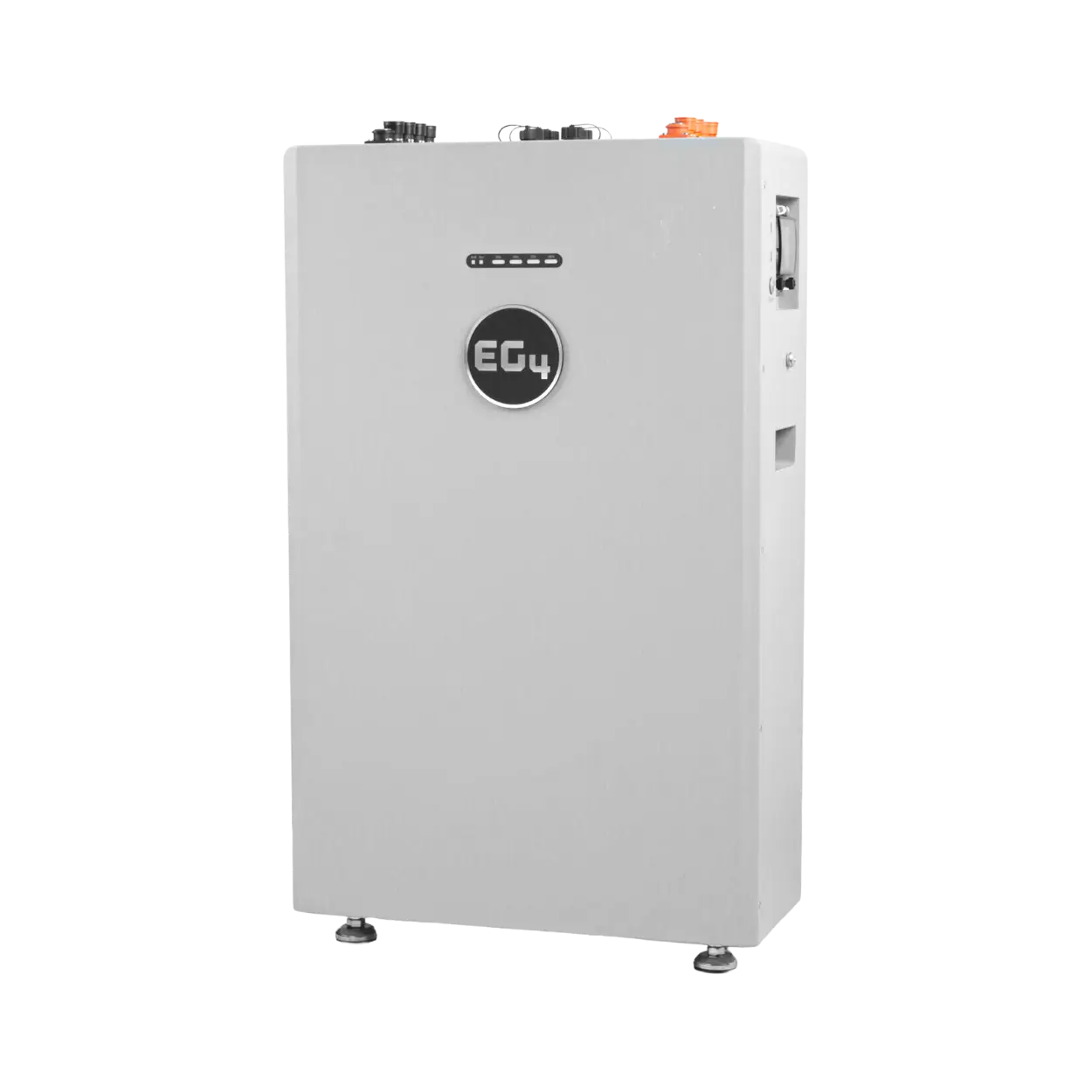

The new EG4 48V 314Ah AllWeather WallMount Battery is here, and on paper, it looks like a serious upgrade over previous EG4 batteries. You’re getting more capacity, a higher IP rating, and the newer Gen 3 battery management system (BMS). All of that is packed into the same familiar wall-mounted design that works so well for so many setups
But after spending time testing it, it’s clear this isn’t just a simple capacity upgrade. There are some real improvements here, along with a few things that feel a bit rushed.
If you’ve already looked at older models like the EG4 280Ah WallMount Battery or even the indoor version of their 314Ah battery, this review is going to matter.
Before we take a look at the results of our testing, here’s a quick look at what the new 314Ah version of this EG4 battery brings to the table:
{{review-summary}}
At its core, this is a 48V lithium iron phosphate (LiFePO4) battery designed for solar and backup systems. It’s meant to be wall-mounted (or floor-mounted with a base), and it’s built to integrate with inverters for full home backup power or off-grid setups.
EG4 has released quite a few batteries in this WallMount lineup, so all of that sounds pretty familiar. It’s actually an upgraded version of the EG4 WallMount 314Ah Indoor Battery we reviewed earlier in the year.
As you can probably guess from the name, the big selling point here is the “All-Weather” design, meaning this isn’t just for garages or utility rooms, you can install it outdoors in harsher environments without worrying about water or dust damage. We’ll jump into that a little later, but that’s due to the upgraded IP67 waterproof rating, as well as a more advanced self-heating feature.
This isn’t EG4’s first attempt at an outdoor-friendly battery, as they already launched a 14.3kWh WallMount All-Weather Lithium Battery, but they seem to have made some significant changes to this latest release.
For anyone building or expanding a system with high-capacity batteries for backup power, this is clearly aimed at both DIY users and installers who want something powerful, scalable, and easier to configure than older battery systems.

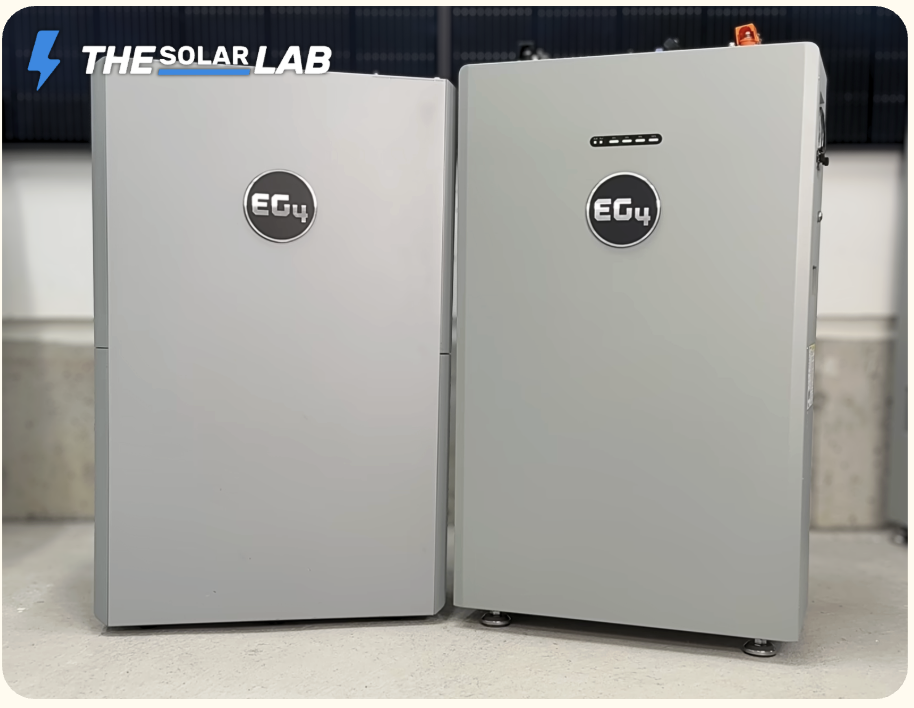

Again, from a design standpoint, this battery will feel very familiar if you’ve used previous EG4 batteries. The form factor hasn’t changed much, but internally, there’s a lot going on.
The biggest upgrade is the IP67 rating. That’s a meaningful jump from older models like the 280Ah version, which were only rated for water jets (IP66). This new version can actually handle temporary submersion, making it a much better fit for outdoor installs, as well as basement and garage installations in areas that are prone to flooding and extreme weather.
Internally, the battery is built like a tank. There’s a double-layer sealed design, temperature sensors, fire protection, and everything you’d expect from a UL-listed system. It’s very much a “set it and forget it” type of build (once it’s installed properly).
The terminals and communication ports are all sealed and mounted on top of the battery, which helps maintain that all-weather rating. You’re also getting multiple connection points rated up to 250A, which is great for larger systems.
However, at over 300 lbs, this thing is heavy (really heavy). It’s one of the few units we’ve reviewed that failed the Tiny Baby Lift Test. You’re not going to be able to casually move this around without help. EG4 did improve the design of the handles, but most people will want to use some sort of straps to lift this during installation.
The Gen 3 BMS (Battery Management System) is the heart of this battery, and it’s where most of the improvements (and frustrations) come from.
On the positive side, this new system eliminates a lot of the manual tasks during setup. No DIP switches, no protocol guessing, no headaches. If you connect multiple Gen 3 batteries together, then they’ll automatically identify each other and configure themselves. For DIY solar setups, this is a huge win.
It also introduces faster active cell balancing, which improves efficiency and extends the overall lifespan for the battery. Over time, that means better performance and more value from your investment.
Another major upgrade is wireless firmware updates. Typically, updating solar batteries has been a pain, forcing you to connect a laptop with cables or a specialized dongle just to update each unit individually. With this new EG4 Gen 3 BMS, updates can be done remotely through the app.
However, and this is important, that feature isn’t fully rolled out yet. Right now, updates still rely on software that doesn’t even support macOS, which is going to be really frustrating for a lot of users that own Apple computers.
Now that we’ve highlighted a few of the things that set it apart from previous EG4 batteries, let’s take a look at how it performed when we ran it through our standard battery testing:
From a performance standpoint, this battery does exactly what you’d expect (and that’s not something we take for granted).
When we tested it, the efficiency was effectively 100%. While perfect efficiency is standard for high-quality batteries, as losses typically happen at the inverter level, it’s still nice to know that you’ll actually be able to pull the full 16kWh from each unit.
Charging performance is strong as well. In our testing, it reached a 99% charge in just over 2 hours, with a full charge taking around 3.5 hours. That last 1% seems to be really stubborn, but the fact you can pretty much get a full charge in such a short amount of time is hugely impressive.
Discharge performance is just as solid. It handled its rated 200A output without issues and even surged beyond that (up to around 250A) for short bursts. That’s consistent with what we’ve seen from EG4 batteries in the past. With a few rare exceptions, EG4 batteries tend to overdeliver slightly on surge performance, so it’s great to see that trend continue with this more advanced unit.
The built-in heating system is another important feature, especially for those in the northern United States and Canada. We know that finding a suitable battery for an off-grid install in a colder climate has been a real pain point for a lot of our YouTube viewers, so it’s something we were really eager to test with this battery.
When we ran our cold-weather testing, the battery’s internal heaters kicked on at 0°C (32°F) and shut off at 3°C (37.4°F), keeping the battery safely above freezing, without wasting unnecessary power running the heater when it didn’t need to be on.
That ensures it can continue charging and discharging properly in cold environments. Combine that self-heating feature with the fully weather-sealed design, and you’ve got a legitimately practical battery for cold climates.
The trade-off is power consumption. The heaters draw about 448 watts, which is significant. If you’re running this in cold conditions regularly, that’s something you’ll want to account for in your system design.
Sure, you could help reduce the frequency that the heater needs to kick in, either with better insulation or installing the batteries inside your actual home, rather than a shed or garage, but it’s an issue that should be taken seriously if you’re off-grid and fully dependent on battery power.
Now that we’ve covered the basics, let’s jump into all of the positive things that stood out to us about this battery:
One of the biggest upgrades with this new EG4 battery is the move to an IP67 rating. Previous all-weather models topped out at IP65 or IP66, which protected against dust and water exposure, but not full submersion.
We’ve had quite a few people reach out to us looking for fully waterproof batteries, as basement floods and hurricanes are a major concern for some people that run their own off-grid systems.
With its IP67 rating, this battery can actually withstand those flooding conditions. Whether you're installing it in hurricane-prone areas, near the coast, or anywhere that might see water intrusion inside your home, this added level of protection makes the “AllWeather” tagline in the battery’s name actually feel justified.
The Gen 3 Battery Management System is a major step forward in terms of usability. It removes the need for DIP switches and manual protocol settings, which have historically been one of the most frustrating parts of setting up solar batteries.
Instead, these batteries can automatically identify and configure themselves when connected together. That means less time troubleshooting communication issues and more time actually using your system. For DIYers and installers alike, this makes the entire process significantly more user-friendly.
With all of that said, having full software dependency for setup can be a bit risky. We’ll discuss that in more detail in the next section.
The Gen 3 BMS also improves performance where it really matters. Faster active cell balancing allows the battery to operate more efficiently and helps extend its overall lifespan. That’s not just a small technical upgrade, it directly impacts how long your investment will last.
On top of that, charging performance was strong in testing, with the battery reaching 99% in just over two hours and handling significant surge loads well beyond its rated output for short bursts. This is exactly what we’ve come to expect from the best EG4 batteries.
Another standout improvement is that EG4 managed to increase the capacity to 314Ah (about 16kWh) without increasing the physical size of the unit. Previous models in this same build could only store around 14kWh.
And while 2kWh of extra storage capacity may sound unimpressive on paper, but that’s like adding an entire Anker C2000 Gen 2 or Bluetti Elite 200 V2 to your backup power setup for each EG4 battery you buy.
It’s a huge win for anyone working with limited space. You’re getting significantly more storage in the same footprint as previous models, which makes system upgrades or new installs much easier to plan.
Compared to older EG4 wall-mounted batteries, this version feels much more streamlined and ready for real-world use.
You no longer need to remove panels or access hidden compartments just to get to key components. Everything is accessible, sealed, and designed to handle outdoor conditions right out of the box. It’s a cleaner, simpler design that aligns well with the “install it and forget it” approach many users are looking for.
For professional installers, this battery seems like something that would be a huge hit. It’s easy to install, easy to configure, and should be very low on maintenance requirements.
Another small but important detail is the fact that EG4 equipped this battery with adjustable feet. Sure, that's useful for those who do not feel like mounting a 300 lb battery on the wall, but the real advantage here is it ensures this unit is compatible with the EG4 BOSSBox ESS. With its self-heating feature and weatherproof design, these batteries would be perfect for that type of outdoor setup.
While there’s a lot to like, no solar battery is perfect, and this unit is no exception. Most of the EG4 batteries we’ve tested have been huge hits, but here are some of the issues we ran into while testing this one:
One of the most noticeable downsides is the lack of a built-in screen. While the app allows you for some really detailed monitoring, not having any on-unit display makes basic troubleshooting more inconvenient than it should be.
If something goes wrong, you can’t just walk up to the battery and check an error code. Instead, you have to connect through the app on your phone or a computer. In situations like a power outage, that extra step can be frustrating, especially if connectivity is limited.
It’s worth pointing out that there are some LED indicator lights on the front panel, but they just provide remaining charge updates. Even that’s fairly limited, as there are only enough lights to show you 0%, 25%, 50%, 75%, or 100% battery life updates.
Here’s where things got a little iffy. If you’re starting fresh with this battery, or any future releases that have the Gen 3 BMS, you’ll likely have no issues. But if you’re trying to integrate this battery into an existing setup, especially one using older EG4 280Ah WallMount Batteries, you could run into problems.
The Gen 3 BMS does not natively communicate with Gen 2 systems, and there’s currently no simple plug-and-play solution. You may need to manually modify communication cables just to get everything working together.
Even more limiting than that, mixing battery generations reduces your system expandability dramatically. While older setups could scale up to 64 batteries, Gen 3 systems are capped at 32. Mixed Gen 2 and Gen 3 setups can drop as low as 8 total batteries!
We realize that most people aren’t going to need more than eight 16kWh batteries, but that’s still a huge limitation if you were planning to expand an existing system over time.
Finally, the move toward a fully software-driven system won’t appeal to everyone. Older batteries with physical switches gave users more direct control and flexibility, especially in off-grid or remote environments.
With this new system, many functions rely on software, updates, and connectivity. If those aren’t available, or if EG4’s customer support standards change down the line, it could limit how adaptable the battery is in the future.
Basically, we just get a general sense that this battery may have been released a bit too early. EG4 are normally so careful about what they release, but we ran into more issues with this unit than we expected to see.
Luckily, most of the issues should be fixable with a few firmware updates. It
The EG4 48V 314Ah All-Weather WallMount Battery is a really strong product, but it’s not perfect.
If you’re building a new system from scratch, this is easily one of the best batteries for backup power that EG4 has ever released. It’s powerful, efficient, has a legit waterproof rating, and it’s far easier to set up than older models.
But if you already have an existing system with older EG4 batteries, you’ll need to think carefully before upgrading. Compatibility issues and system limits could make this a frustrating addition.
Basically, this battery feels like the future of EG4 batteries, but it also feels like it arrived just a little bit early. We would still recommend it, but just make sure you’re aware of the potential issues, especially if you already own some of the earlier EG4 WallMount Battery releases.
