When it comes to off-grid inverters, EG4 has been on a serious roll lately. With releases like the EG4 6000XP, the 18KPV Hybrid Inverter, and the FlexBOSS Series, they’ve really stepped their game up.

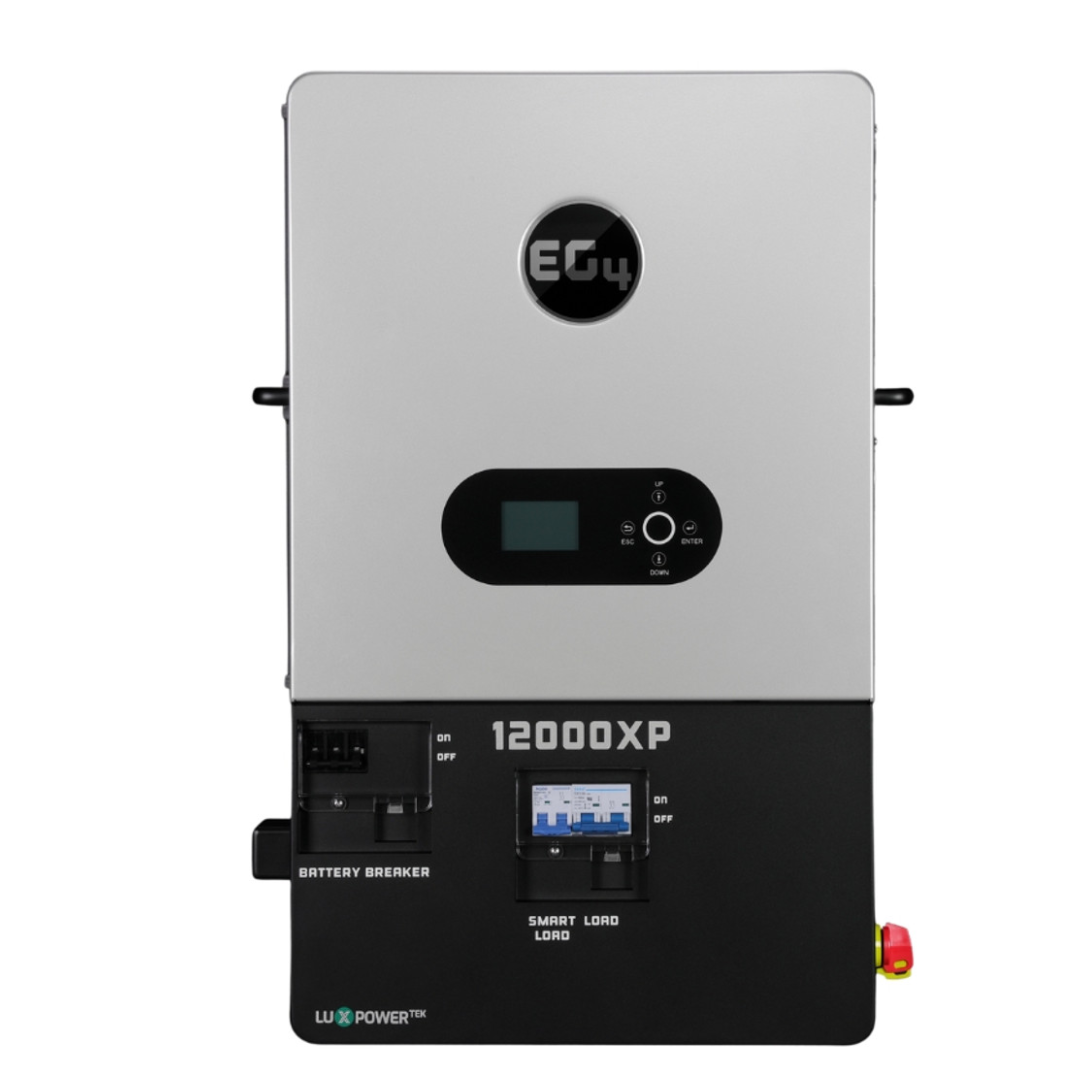

Standing tall amongst that crowd of well-made, high-performance inverters is their relatively new EG4 12000XP Off-Grid Inverter. Launched at the tail end of 2024, this high-capacity inverter is designed for serious off-grid users who want that perfect mix of power and simplicity. But is it actually worth the money?
We wanted to find out, so we got our hands on one and spent some time running it through all of our usual real-world testing. Let’s find out if the 12,000XP is another hit from EG4, or a rare miss.
Before we dive into the nitty-gritty of what we like and dislike about this off-grid inverter, let’s take a quick look at the specs:
You can almost think of the EG4 12000XP as a beefed-up big brother to the EG4 6000XP. It offers double the output and input capabilities, while maintaining a familiar design and layout.
With that said, we wouldn’t want you to assume that it’s just a scaled-up clone, as it actually delivers some new features and is a serious step up when it comes to performance.
{{review-summary}}
To put things frankly, this unit really impressed us throughout all of our real-world testing.
As long as we kept the loads properly balanced, it handled up to a 12,000W load all day long. This is exactly how EG4 advertises the performance for this unit, so it’s always nice to see a product deliver so comprehensively.
Once we had everything configured correctly, it was even able to run our huge 240V compressor, which surges at about 10,000W. On top of that, it was able to do so even while it was already pushing a 10,800W load. That’s really impressive and something quite a few of the inverters we’ve tested have failed to come close to pulling off.
Still, it did shut down after about 30 seconds of running this load because the total output significantly exceeded what it’s rated for. But the fact that it could even start that huge compressor while under such a heavy load speaks volumes. If you’re running large appliances, an air conditioner, or your own compressor, there’s a really good chance the EG4 12000XP isn’t going to flinch.
When it came to testing the idle consumption, things weren’t quite as remarkable. Basically, the idle seemed to sit a bit on the higher side, usually coming in around 107 watts, or 2.1 amps, when it was drawing power from a battery. Not a deal-breaker, but something to be aware of if you’re really trying to optimize how you use your stored battery power.
Overall, we really were impressed with this inverter, and think it would be a great option for anyone building out a serious off-grid solar setup. And aside from the fact it just performs really well overall, here’s what stood out the most:
One of the clear standout features you get with the EG4 12,000XP Inverter is its smart load functionality. It can shed or activate a load based on the remaining power you have stored in your batteries, allowing you to automate your system in a really user-friendly way.
Let’s say your EV charger is plugged into the smart load breaker. In this scenario, you could configure the 12,000XP to shut off charging if your battery power dipped below a certain threshold. This would allow you to more easily manage your stored power, so you could prioritize certain loads in blackout situations.
On the other hand, it can also activate certain loads when your battery bank reaches a high state of charge.
We’ll be honest, it took us a few phone calls to Signature Solar’s customer support to fully understand how to set it up (more on that later), but once we got it cooking, it worked really well.
It’s also worth noting that any sort of smart load you have set up will need a trigger event. This means if the load is plugged in but the battery level isn’t within the configured range, it won’t activate without manually adjusting the settings.
It may be a bit tricky, but once you have it up and running, it’s really helpful for automating your load management. If you’re finding this part of the setup process confusing, save yourself the headache and just call Signature Solar.
Like most EG4 inverters, this unit definitely won us over with its straightforward and clearly labeled internal layout. Behind the main front door panel, you’ll find your breakers, dry contacts, battery connection points, the gas generator input, and both your smart and regular load terminals.
It's easy to access, and pretty much everything about the install process can be done using little more than an Allen key. Once you do have it mounted and wired up, everything just feels nice and solid. Even the knockouts for running your cables are really easy to work with, and they make it easy to achieve a really clean setup, even if you’re totally new to setting up this type of equipment.
The fact they equipped this unit with removable air filters is also a nice touch, as this means you can easily install it in a garage or workshop, without having to worry about it filling up with dust and debris.
Overall, it’s just really obvious EG4 put a lot of thought into the design, and it seems like they most likely had homeowners and DIY installers in mind when they were putting it together.
We’ve complained about the awkward, fold-out handles EG4 has used for their solar equipment in the past. Not only are they difficult to grip, they really pinch your fingers. Luckily, they seem to have fixed that issue with the 12,000XP.
When you’re talking about a unit that weighs 105 lbs, having ergonomic handles that aren’t going to crush your fingers is definitely something that’s worthy of pointing out.
When we hooked this unit up, we were really happy to see that EG4 pre-configured it to work with all of their batteries. Whether you’re going with server rack batteries, like several of their super popular EG4 LL 48Vs, or you’re opting for something wall-mounted, like the EG4 PowerPro Batteries, setup couldn’t be easier.
Again, for anyone doing a DIY install, these little things make the entire process so much easier.
EG4 continues to impress when it comes to support. Whether you call Signature Solar (the top EG4 retailer), or contact EG4 directly, you’ll reach someone who actually knows what they’re talking about.
Both companies are also based in Texas, and they don’t outsource their support, so you don’t have to deal with any sort of language barrier when you call them. Sounds like a little thing, but unreliable and just plain poor support can definitely be a problem with some of these solar companies.
However, once you get through to Signature Solar or EG4, they’re responsive, willing to walk you through setup or troubleshooting, and you’re not going to feel like you’re on a 6-hour hold with your cable company.
In our case, we called them a couple of times while configuring the smart load function for this 12,000XP, and they were a huge help. This is actually one of the main reasons we continue to recommend EG4 products, not just for their performance, but for the people behind them.
If you’re planning a DIY install, trust us, this will make your life easier.
As with just about every product we’ve ever tested, the 12,000XP wasn’t perfect. Here are a few things we’d like to see improved:
Technically, because it’s off-grid, Rapid Shutdown (RSD) isn’t required. But if you already have an existing emergency RSD button, like we did, it probably won’t work with this unit.
That’s because most inverters use a jumper wire system where the button breaks the connection to initiate shutdown. This inverter uses the opposite logic, so you make a connection to shut it off. That means most existing buttons won’t be compatible without rewiring or buying a new RSD setup.
Other EG4 inverters like the EG4 6000XP or EG4 18KPV don’t have this issue, so we hope this gets addressed in future iterations. It’s a small gripe, but we wanted to point it out.
This is another minor gripe, and it’s definitely not an unbearable level of noise, but when this unit is running under a heavy load, it hums in a pretty noticeable way.
For garages, workshops, or any sort of area where noise isn’t a huge issue, it’s totally fine. But you won’t want this inside your main living space, especially if you’re running it while you’re trying to sleep.
We’ve seen better display screens just from EG4, nevermind other brands. Their PowerPro WallMount Batteries, the 18KPV Hybrid Inverter, and even the FlexBOSS units have more polished, modern displays.
This one? It’s legible and functional, but feels like an off-brand tablet screen. In other words, it works, but doesn’t feel quite as premium as the rest of the unit. The buttons are also a little stiff, which isn’t the case with the above-mentioned units.
At $2,449 (with discount code: SAVE50THESOLARLAB), the EG4 12,000XP isn't just one of the most powerful off-grid inverters EG4 has released, it’s also one of the most affordable high-performance models they’ve ever launched.
Yes, it’s not grid-tied. And yes, it has a couple of small quirks. But if you’re building an off-grid system and want serious output power, rock-solid reliability and customer support, and the option to easily expand your setup in the future, this thing absolutely delivers.
It’s easy to install, pairs really well with EG4 server rack and wall-mounted batteries, supports AC coupling, has a gas generator input, and brings some genuinely helpful smart features to the table.
We’d absolutely recommend it to a friend, especially one with a big off-grid property and a garage full of power-hungry tools.
